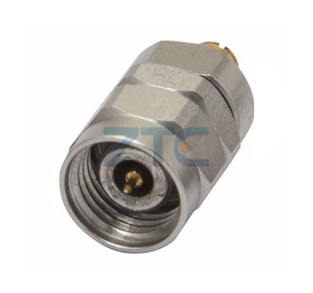

2.92mm Male - SMPM/SSMP/GPPO Female (P/N:GPJ-MKP-SNM-01)
Drawing
Specifications
| 1. Materials and Plating | ||
| Structure | Material | Plating |
| Connector Body | Stainless Steel | Passivation |
| Contact PIN | Be-Cu | Gold |
| Insulator | PEEK/Teflon | N/A |
| 2. Electrical Characteristics | ||
| Impedance | 50 ohm | |
| Voltage Rating | 335 V(rms) | |
| Frequency Range | DC 0~40GHz | |
| Dielectric Withstanding Voltage | 500 V | |
| Insulation Resistance | ≥500 Mohm | |
| VSWR | ≤1.20:1 (DC 0~40GHz) | |
| Insertion Loss | 0.04√ f GHz | |
| 3. Mechanical Characteristics | ||
| Mating Cycles | ≥ 500 cycles | |
| Mating Torque | 5 - 7 in - lbs | |
| 4. Environmental Characteristics （RoHS Complliant) | ||
| Temperature Rating | -40°C ~ +85°C | |
| Corrosion (Salt Spray) | MIL-STD-202, Method 101, Condition B | |
| Vibration | MIL-STD-202, Method 204, Condition D, 20 Gs | |
| Shock | MIL-STD-202, Method 213, Condition I, 100 Gs | |
| Thermal Shock | MIL-STD-202, Method 107. Cond. B, -40°C to +85°C | |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B | |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. | |
